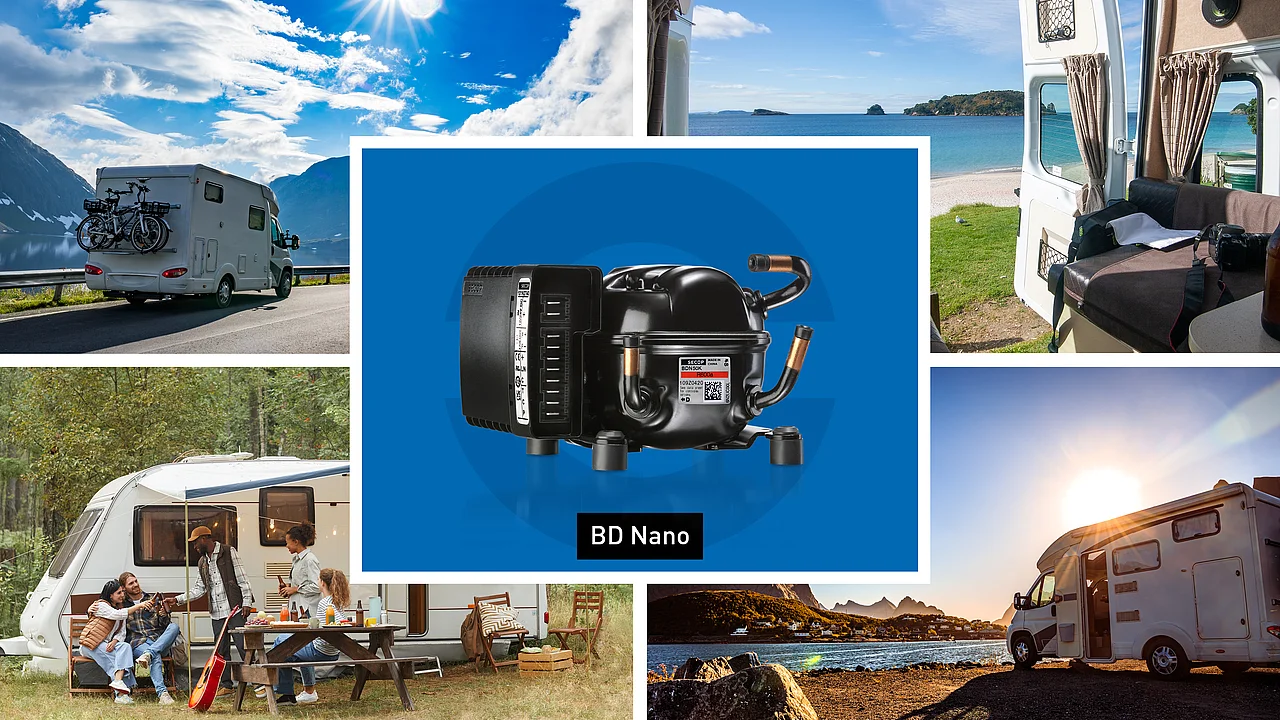

BD Nano R600a Leisure
BDN50K · R600a · 109Z0420 + 101N2740
The BDN50K runs on R600a (isobutane) with the recreation controller, for refrigerators in campervans, motorhomes, boats and portable units. At 1.5 kg and 93.3 mm including the controller it replaces compressors three times its weight, delivering up to 131 W at ASHRAE MBP while preserving battery life.
Target applications: refrigerators in campervans, motorhomes, boats, and portable boxes.
Technical data
- Refrigerant: R600a (isobutane)
- Application: LBP / MBP
- Cooling capacity (ASHRAE MBP): 66.7 W at 2,300 rpm | 131 W at 4,500 rpm
- Cooling capacity (ASHRAE LBP): 31.6 W to 68.1 W
- COP (ASHRAE LBP): 1.48 to 1.56 W/W
- Evaporating temp. range: -30 to 5 °C
- Nominal voltage: 12 / 24 V DC (range 9.6-17 V, 19-34 V)
- Speed range: 2,300 - 4,500 rpm
- Electronic unit: 101N2740, 0.14 kg
- Approvals: UL, CB
- Displacement: 2.6 cm³
- Height and weight: 93.3 mm · 1.5 kg with controller
