DLV Compressors for R290 (Propane)

Secop's DLV variable-speed compressors are suitable for LBP and MBP applications at 100-127 V, 50/60 Hz or 220-240 V, 50/60 Hz.

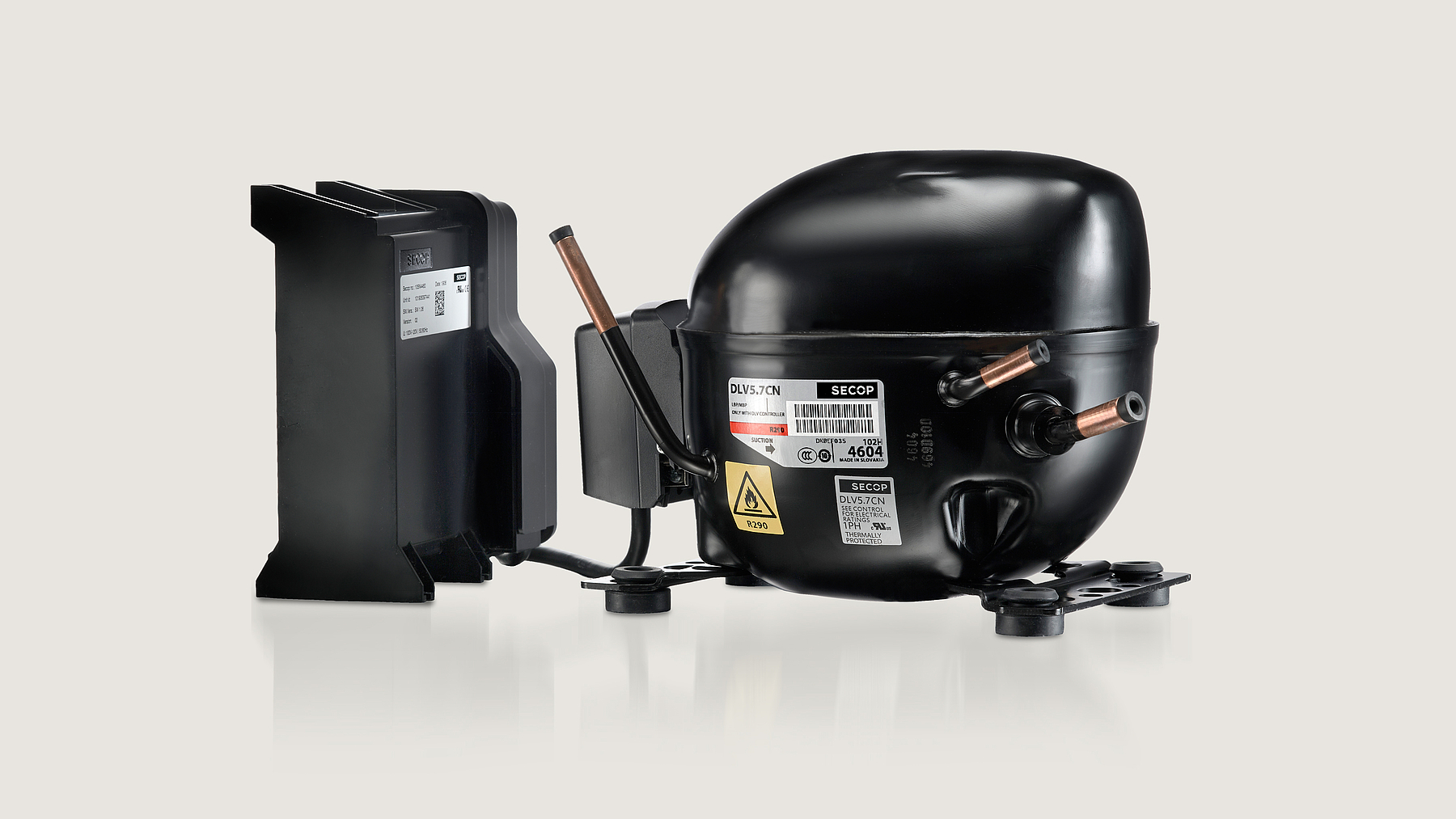

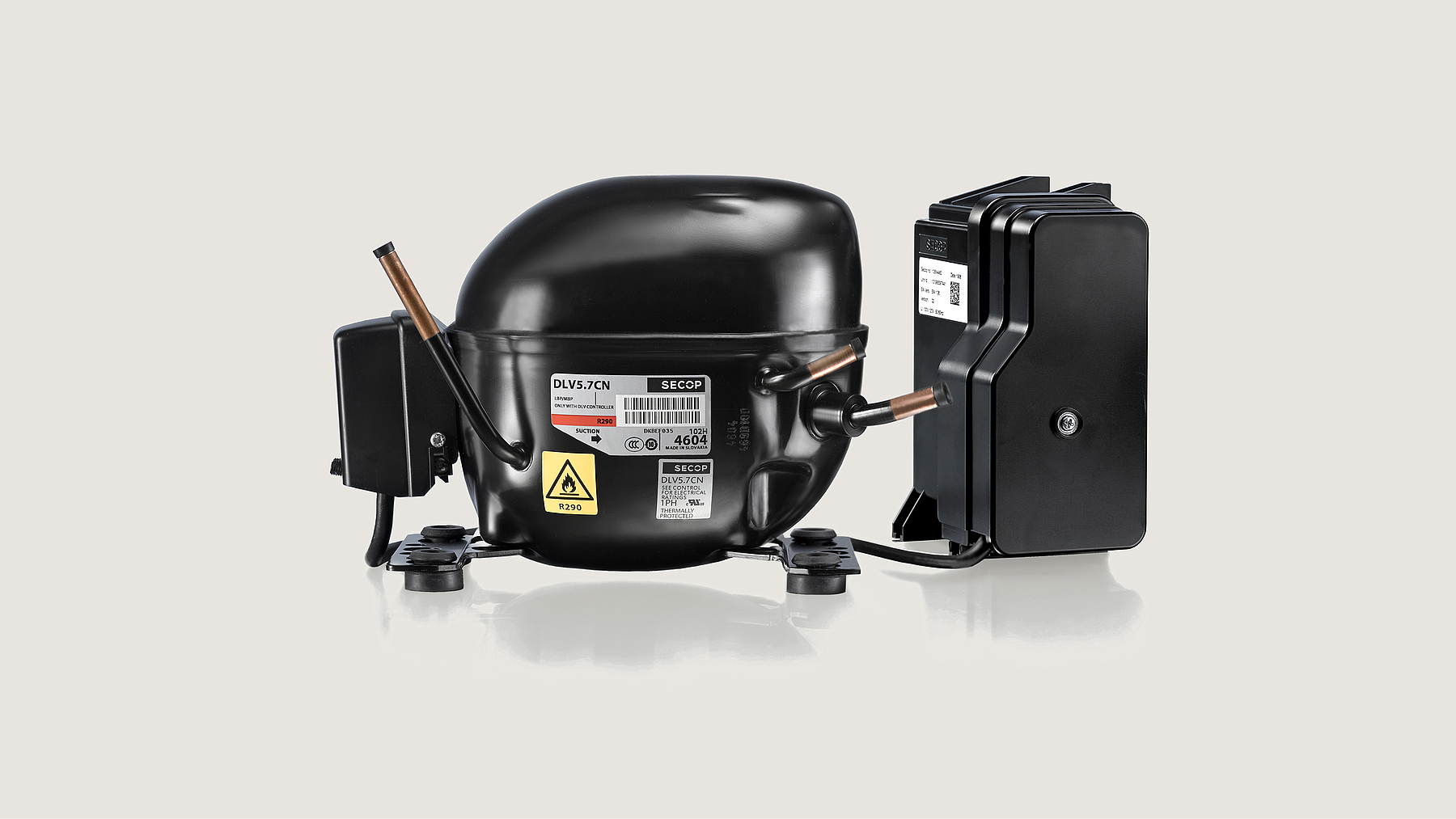

Secop Variable-Speed Propane Compressors for Light Commercial Refrigeration

The DLV series does not only provide 40% energy savings and superb cooling efficiency in a perfect sustainable manner, it also provides a unique solution that is suitable for both LBP and MBP applications.
The demand for more powerful, more flexible, and more environmentally friendly refrigeration solutions continues. This demand can be seen in the global light commercial market of island freezers, beverage displays, water coolers, and ice cream cabinets. In a highly competitive market, innovation and optimization keep on being the keys to success.
Secop has delivered advanced compressor solutions to the light commercial market for more than 40 years now. With the introduction of the variable-speed DLV propane compressors, the idea is to create better performance and better opportunities for everyone in the business.

A Perfect Fit for Both LBP and MBP Applications

It is always important to use an appropriate compressor for the desired application. The consequence is either tripping or overheating and significantly diminishing the life of the compressor.
With the family of DLV compressors, you get more flexibility and no longer need to worry about application restraints. Instead of the traditional sole focus on LBP, it simultaneously includes MBP applications.

Cool Controlling

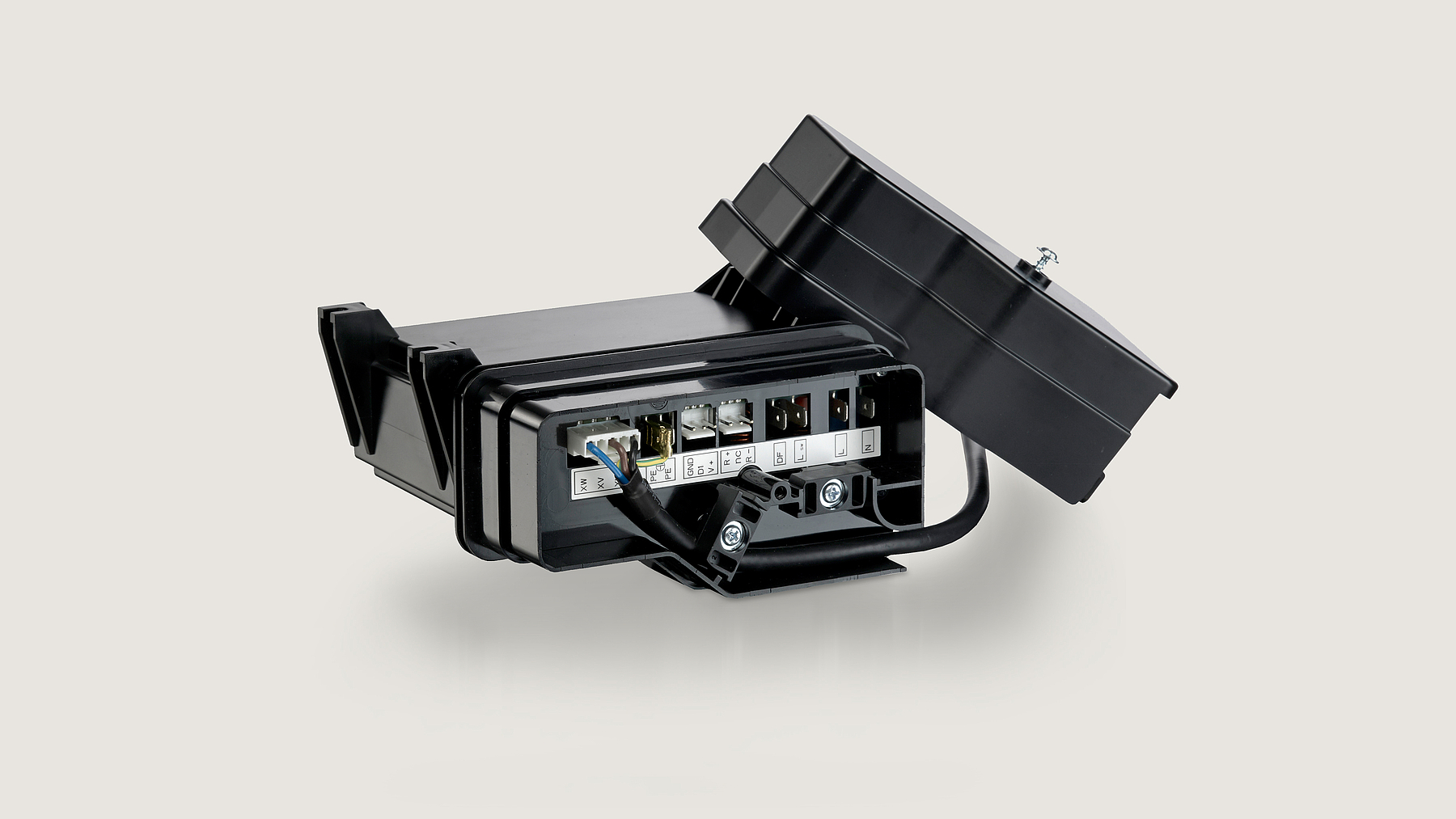

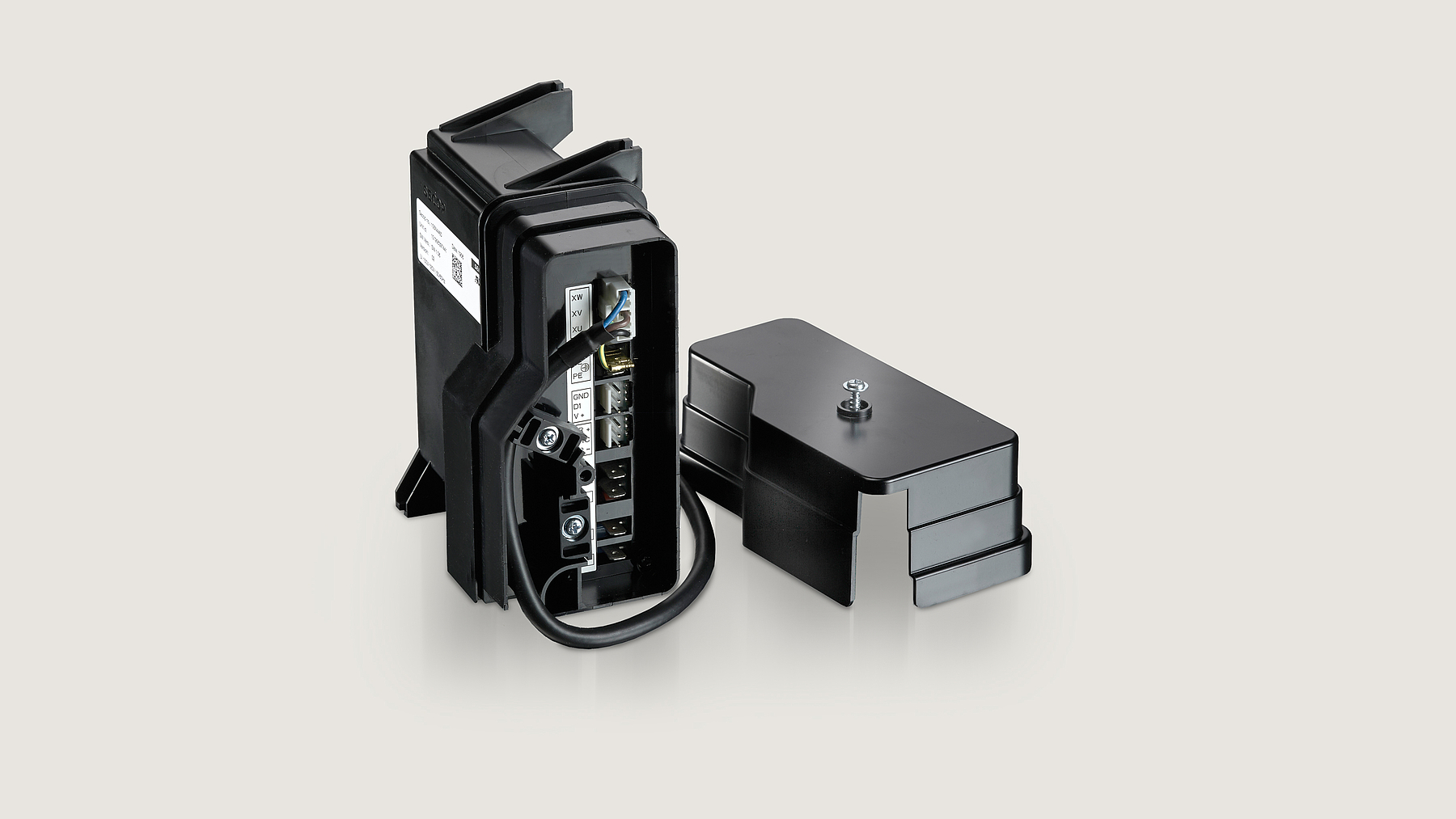

The DLV compressor comes with the new CCD® controller which features a high IP54 protection class. Its common interface enables case controllers from all major suppliers and uses speed control as well as adaptive energy optimization (AEO). The controller also provides a high starting torque and can start against differential pressure. The DLV noise level is up to 10 dBA lower than the level of comparable fixed speed compressors.
Moreover, integration and customization is made easy due to the acclaimed Tool4Cool® software.

Significant Benefits with the DLV Variable-Speed Family

The compressor family is characterized by being ultraefficient, ultracompact, and environmentally friendly using the refrigerant propane (R290) with a low global warming potential, GWP3.
Energy savings of up to 40% are due to the variable-speed design. Compared to non-optimized compressors, atmospheric emissions are also reduced to a minimum.
No matter how you look at the DLV family, we ensure that it offers performance standards for all competitive supermarkets and convenience stores around the globe.


  • Energy savings of up to 40%
  • Common interface to case controllers
  • Suitable for LBP and MBP applications
  • High starting torque
  • Easy customization via Tool4Cool® software
  • IP54 controller housing
  • Compressor with copper connectors and large baseplates
  • Reduction of total cost of ownership
  • Fast payback of incremental investment

Technical Literature

  • DLV-CN Compressors, R290, 220-240 V, 50/60 Hz

    DLV-CN Compressors, R290, 220-240 V, 50/60 Hz

    | Literature | Leaflets

    Download (472.28 KB)
  • DLV-CN Compressors, R290, 100-127 V, 50/60 Hz

    DLV-CN Compressors, R290, 100-127 V, 50/60 Hz

    | Literature | Leaflets

    Download (477.57 KB)

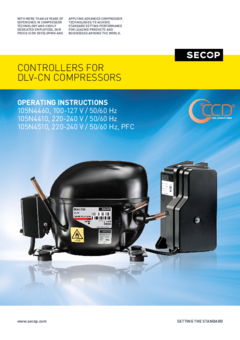

  • DLV-CN Compressors – 105N4460 (100-127 V, 50/60 Hz), 105N4410 (220-240 V, 50/60 Hz), 105N4510 (220-240 V, 50/60 Hz) Controllers

    DLV-CN Compressors – 105N4460 (100-127 V, 50/60 Hz), 105N4410 (220-240 V, 50/60 Hz), 105N4510 (220-240 V, 50/60 Hz) Controllers

    | Literature | Operating Instructions

    Download (3.29 MB)
