• N-Series Compressors

    Hermetic Refrigeration Compressors
    for AC Voltage

    Sales Request   Technical Support

    • Variable-speed variants available
    • Ultra-low temperature models available
    • Hermetic AC compressors with the best efficiency in their class, with fixed- and variable-speed models like e.g. NL, NF, NLE, NLU, and NLV
  • NLV-CN Variable-Speed Compressors
    Complete range of variable-speed models with controllers that can cover different customer requirements with energy savings of up to 40 % compared to fixed-speed compressors

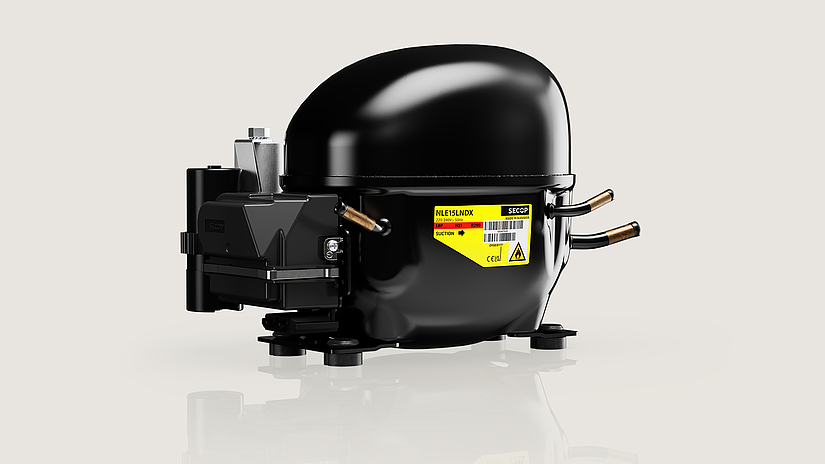

  • NLE Propane Compressors
    The fixed-speed range with maximum efficiency, which ensures a significant reduction in energy consumption, is ready for the latest market requirements in terms of energy labeling

  • NLU8.8DN Heat Pump Compressor
    The NLU8.8DN compressor is the ideal solution for for domestic water heaters with high efficiency and eco-friendly refrigerant propane

  • Ready for Natural Refrigerants
    Capable to substitute products with high Global Warming Potential such as R404A and R134a with the HC refrigerants R290 and R600a

  • Medical Appliances, Variable-Speed
    MN13UVULTM ultra-low temperature medical cooling with variable-speed technology

  • Medical Appliances, Fixed-Speed
    MN11UHULTM and MN13UDULTM models ready for the second stage (cascade) of medical ultra-low temperature applications

Technical Details

Refrigerants R600a, R290, R134a, R404A, R513A, R452A, R170
Nominal Voltage 115 V, 220 V
Voltage Range 103–127 V, 90–135 V, 198–254 V, 187–254 V, 90–270 V, 180–270 V
Frequency Range 50 / 60 Hz
Displacement 6.13–14.65 cm³
Variable Speed Variants Available yes
Ultra-Low Temperature Models Available yes
LBP 127–766 W
MBP 320–1359 W
HBP 1122–1211 W
L-MBP yes
M-HBP no
L-M-HBP no
Use

Find Your Product in Our Selector

Typical Applications

  • Bottle / Beverage cooler

    Bottle / Beverage cooler

  • Preparation table

    Preparation table

  • Vending machine

    Vending machine

  • Glass door merchandiser, large

    Glass d. merchandiser

  • Stainless steel refrigerator

    Stainless steel freezer

  • Keg cooler

    Keg cooler

  • Ultra-low temperature freezer

    ULT freezer

  • Biomedical freezer

    Biomedical freezer

  • Medical cooler

    Medical fridge

  • Centrifuge cooler / freezer

    Centrifuge freezer

Technical Literature

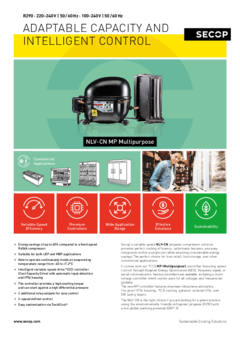

  •  NLV-CN Compressors, R290, 100-240 V, 220-240 V, 50/60 Hz, Multipurpose Controllers

    NLV-CN Compressors, R290, 100-240 V, 220-240 V, 50/60 Hz, Multipurpose Controllers

    | Literature | Leaflets

    Download (664.93 KB)
  • NLV-CN Compressors, R290, 100-240 V, 50/60 Hz, Extended Controllers

    NLV-CN Compressors, R290, 100-240 V, 50/60 Hz, Extended Controllers

    | Literature | Leaflets

    Download (686.50 KB)
  • Medical ULT Compressors, R170, 220-240 V, 50 Hz & 115-127 V, 60 Hz

    Medical ULT Compressors, R170, 220-240 V, 50 Hz & 115-127 V, 60 Hz

    | Literature | Leaflets

    Download (413.11 KB)
  • Energy-Optimized Propane Compressors

    Energy-Optimized Propane Compressors

    | Literature | Quick References

    Download (3.95 MB)
  • Variable-Speed Drive Compressors

    Variable-Speed Drive Compressors

    | Literature | Quick References

    Download (6.09 MB)
  • Compressors for Medical Cold Chain Solutions

    Compressors for Medical Cold Chain Solutions

    | Literature | Quick References

    Download (3.47 MB)

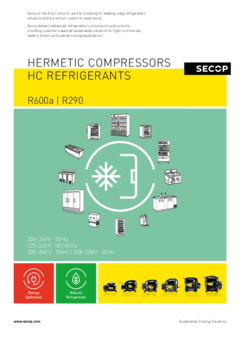

  • Hermetic Compressors, R600a, R290

    Hermetic Compressors, R600a, R290

    | Literature | Quick References

    Download (14.47 MB)
  • Hermetic Compressors, 60 Hz, R134a · R513A, R404A · R452A, R290, R600a

    Hermetic Compressors, 60 Hz, R134a · R513A, R404A · R452A, R290, R600a

    | Literature | Quick References

    Download (14.27 MB)
  • Hermetic Compressors, R134a · R513A, R404A · R452A

    Hermetic Compressors, R134a · R513A, R404A · R452A

    | Literature | Quick References

    Download (11.55 MB)
  • Hermetic Compressors for AC Voltage

    Hermetic Compressors for AC Voltage

    | Literature | Catalogs

    Download (60.03 MB)

Highlights

In addition to the technical data available in the compressor section, you can find more information and materials about our products. This includes a detailed explanation of the product, the customer benefits as well as interviews, and much, much more.
