Configuration-Code NLE10DNDX_25RC |
|||||
|---|---|---|---|---|---|
| Code number | 105H7010 | ||||
| Type designation | NLE10DNDX | ||||
| Product status | Production - Active | ||||
| Data Sheet | Download | Setup | |||
| Polynomial | NLE10DNDX_25RC | ||||
| Voltage range [V … V] | 198 … 254 | ||||
| Frequency | 50 | ||||
| High starting torque | yes | ||||
| Run capacitor | yes | ||||
| Motor speed [rpm] | 2900 | ||||
| Variable speed | no | ||||
| Refrigerant | R290 | ||||
| Specials | Tropical use recommended | no | |||
| Heavy duty pull down capability | yes | ||||
| Mobile operation possible | no | ||||
| Hot gas defrost capability | yes | ||||
| Cooling | Required cooling | Max. ambient temp.: 43°C F2 (fan 3m/s) | |||

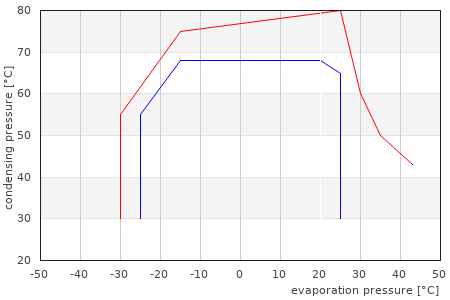

| Operation limits diagram = short = continuous |
|
||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 352 | 1202 | 716 | 2445 | 1226 | 4187 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.18 | 4 | 1.9 | 6.5 | 2.62 | 8.9 | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 482 | 1646 | 902 | 3080 | 1468 | 5013 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.59 | 5.4 | 2.28 | 7.8 | 3.08 | 10.5 | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 257 | 878 | 790 | 2698 | 1254 | 4282 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.12 | 3.8 | 2.26 | 7.7 | 2.83 | 9.7 | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 396 | 1352 | 841 | 2872 | 1252 | 4276 | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.37 | 4.7 | 2.21 | 7.5 | 2.62 | 8.9 | |
| AHAM | AHAM | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 536 | 1830 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.99 | 6.8 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 504 | 1721 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 2.03 | 6.9 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 451 | 1540 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.7 | 5.8 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
