Configuration-Code NLE13MND_25RCG3 |
|||||
|---|---|---|---|---|---|
| Code number | 105H7302 | 105H7312 | |||
| Type designation | NLE13MNDX | NLE13MNDX | |||
| Product status | Production - Active | Production - Variant | |||
| Data Sheet | Download | Download | Setup | ||
| Polynomial | NLE13MND_25RCG3 | ||||
| Voltage range [V … V] | 198 … 254 | ||||
| Frequency | 50 | ||||
| High starting torque | yes | ||||
| Run capacitor | yes | ||||
| Motor speed [rpm] | 2900 | ||||
| Variable speed | no | ||||
| Refrigerant | R290 | ||||
| Specials | Tropical use recommended | no | |||
| Heavy duty pull down capability | yes | ||||
| Mobile operation possible | no | ||||
| Hot gas defrost capability | yes | ||||
| Cooling | Required cooling | Max. ambient temp.: 43°C F2 (fan 3m/s) | |||

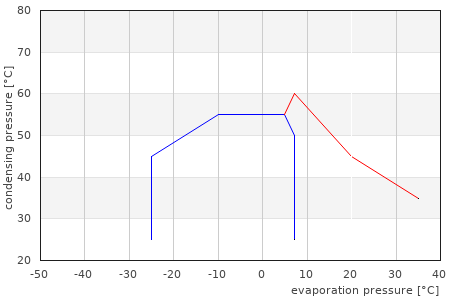

| Operation limits diagram = short = continuous |
|
||||
| CECOMAF | CECOMAF | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 484 | 1653 | 906 | 3094 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.3 | 4.4 | 1.75 | 6 | n/a | n/a | |
| ASHRAE | ASHRAE | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 645 | 2203 | 1136 | 3879 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.67 | 5.7 | 2.09 | 7.1 | n/a | n/a | |
| EN12900 | EN12900 | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 364 | 1243 | 1015 | 3466 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.28 | 4.4 | 2.19 | 7.5 | n/a | n/a | |
| ARI540 | ARI540 | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 523 | 1786 | 1068 | 3647 | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.39 | 4.7 | 2.1 | 7.2 | n/a | n/a | |
| AHAM | AHAM | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 701 | 2394 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.98 | 6.8 | n/a | n/a | n/a | n/a | |
| VSD_opt1 | VSD_opt1 | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 648 | 2213 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.95 | 6.7 | n/a | n/a | n/a | n/a | |
| VSD_opt2 | VSD_opt2 | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | 596 | 2035 | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | 1.71 | 5.8 | n/a | n/a | n/a | n/a | |
| lowTemp | lowTemp | ULT | LBP | MBP | HBP |
| Cooling capacity [W | Btu/h] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
| COP | EER [W/W | Btu/Wh] | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |
