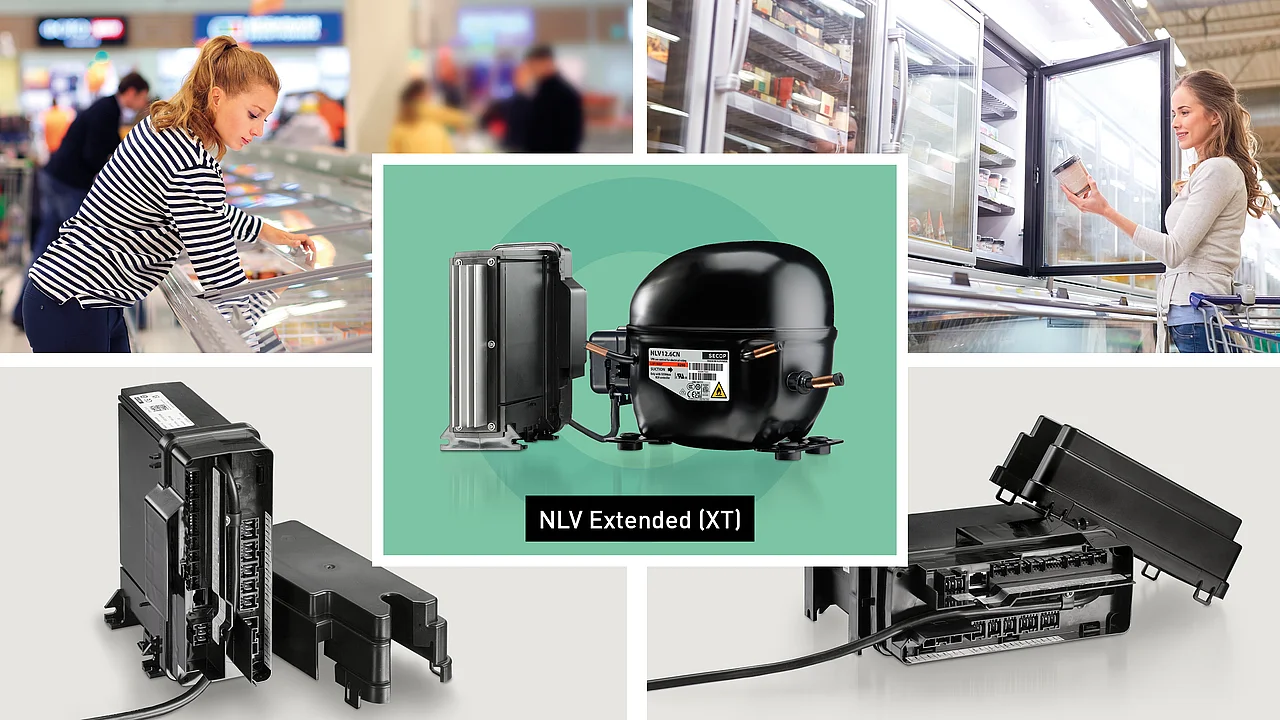

NLV12.6CN with Extended Controller
NLV-CN XT · R290 · 105H7365 + 105N4866
The NLV12.6CN adapts its speed between 2,000 and 4,500 rpm to match real cabinet demand, saving up to 40% energy against a fixed-speed R404A compressor. The Extended controller adds eight relay outputs for case control, four temperature sensors and four digital or analog I/O, all configurable through Tool4Cool®.
Target applications: food retail display cases, food storage cabinets, and other commercial refrigeration.
Technical Data
- Refrigerant: R290 (propane)
- Application: LBP / MBP
- Speed range: 2,000 - 4,500 rpm
- Capacity Q0 (ASHRAE MBP): 766 W at 2,000 rpm | 1,772 W at 4,500 rpm
- COP (ASHRAE MBP): 2.18 W/W at 2,000 rpm | 2.12 W/W at 4,500 rpm
- Capacity Q0 (ASHRAE LBP): 393 W to 916 W
- COP (ASHRAE LBP): 1.76 W/W at 2,000 rpm | 1.80 W/W at 4,500 rpm
- Evaporating temp. range: -40 to 7.2 °C
- Electronic unit: Extended (XT) multi-voltage, 105N4866
- Input voltage: 100-240 V, 50/60 Hz (range 90-270 V)
- Protection class: IP43
- Approvals: VDE, UL, CCC, CB · PFC to EN 61000-3-2
- Displacement: 12.55 cm³
