• KL-Series Compressors

    Hermetic Refrigeration Compressors
    for AC Voltage

    Sales Request   Technical Support

    • Next-generation hermetic AC compressors with maximum efficiency
  • Premium Robustness
    The KL-Series features the tried and trusted quality of our K-Series optimized for light commercial applications

  • Service Applications (LBP/MBP)
    Reliable design for bottle coolers, glass door merchandisers, ice cream freezers, ice cream makers, and food service applications

  • Easier Application Assembly
    New terminal board design for additional interconnections

  • Reduced Noise Level
    Improved noise and reduced vibrations, a new benchmark level for hydrocarbon refrigerants

  • Superior Efficiency
    High COP and top efficiency for light commercial applications with low GWP refrigerant propane (R290)

  • Innovative Patented Plug Connection
    Patented hermetic terminal plug to prevent risks with flammable refrigerants

Technical Details

Refrigerants R290, R134a
Nominal Voltage 220 V, 115 V
Voltage Range 95–140 V, 170–254 V, 198–254 V
Frequency Range 50 / 60 Hz
Displacement 4–7.7 cm³
Variable Speed Variants Available no
Ultra-Low Temperature Models Available no
LBP 183–395 W
MBP 336–704 W
HBP no
L-MBP yes
M-HBP no
L-M-HBP no
Use

Find Your Product in Our Selector

Typical Applications

  • Bottle / Beverage cooler

    Bottle / Beverage cooler

  • Horizontal glass door freezer

    Glass door freezer

  • Vending machine

    Vending machine

  • Glass door merchandiser

    Glass d. merchandiser

  • Stainless steel freezer

    Stainless steel freezer

  • Ice maker

    Ice maker

  • Catering (Ho.Re.Ca.)

    Catering (Ho.Re.Ca.)

  • Preparation table

    Preparation table

  • Medical cooler

    Medical fridge

  • Biomedical freezer

    Biomedical freezer

Technical Literature

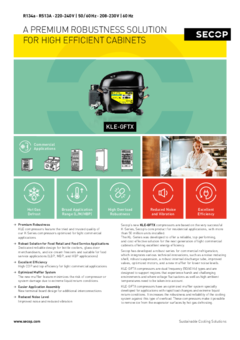

  • KL-Series Compressors for Propane

    KL-Series Compressors for Propane

    | PDF | Infographics

    Download (171.86 KB)
  • KL-Series Compressors, R290, 220-240 V, 50/60 Hz & 208-230 V, 60 Hz

    KL-Series Compressors, R290, 220-240 V, 50/60 Hz & 208-230 V, 60 Hz

    | Literature | Leaflets

    Download (406.81 KB)
  • KL-Series Compressors, R290, 115-127 V, 60 Hz

    KL-Series Compressors, R290, 115-127 V, 60 Hz

    | Literature | Leaflets

    Download (385.19 KB)
  •  KLF-CNDS, 220-240 V, 50 Hz & KLF-CNHS, 115-127 V, 60 Hz Compressors

    KLF-CNDS, 220-240 V, 50 Hz & KLF-CNHS, 115-127 V, 60 Hz Compressors

    | Literature | Leaflets

    Download (450.23 KB)
  • Energy-Optimized Propane Compressors

    Energy-Optimized Propane Compressors

    | Literature | Quick References

    Download (3.95 MB)
  • Energy-Optimized Propane Condensing Units

    Energy-Optimized Propane Condensing Units

    | Literature | Quick References

    Download (3.75 MB)

Highlights

In addition to the technical data available in the compressor section, you can find more information and materials about our products. This includes a detailed explanation of the product, the customer benefits as well as interviews, and much, much more.
